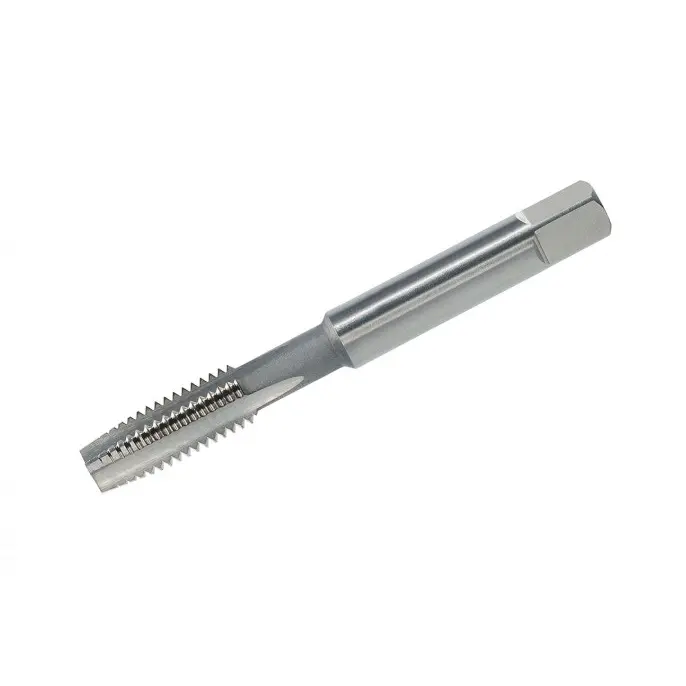

Volkel M14 x 2.0mm Taper Hand Tap | Straight Fluted, Form A

£8.49 (inc. VAT: £10.19)

Volkel M14 x 2.0mm hand tap taper for through holes. Tap diameter: 12.0 mm, straight fluted, Form A, HSS-G, ISO 529

Available on back-order

SKU: HTMT140 Category:

Description

VÖLKEL Hand Tap Taper ISO 529 Form A HSS-G – M14 x 2.0mm

For general use with non abrasive material up to 900 N/mm², and unalloyed and low alloyed steel.

For through / blind holes and thread cutting by hand.

Pack quantity 1
Type of thread Metric Iso-Thread
Standard ISO 529
Form Form A
Material HSS-G
Tolerance ISO2
Size M 14 x 2.0
Overall length 95 mm
Thread length 30 mm
Core hole diameter 12.0 mm
Shank diameter 11.2 mm
Drive connector 9.0 mm
Type of flute Straight Fluted
Application For Through Holes
Thread standard DIN 13

Additional information

Weight 0.071 kg
Dimensions 8 × 1 × 1 cm
Brand

Volkel

Unit Type

Metric

Tap Diameter

12mm

Tap Drill Diameter

M14

Tap Pitch

2.0mm

Material

HSS-G (High Speed Steel Ground)

Tap Type

Taper

Tap Form

Form A

Flute Type

Straight
