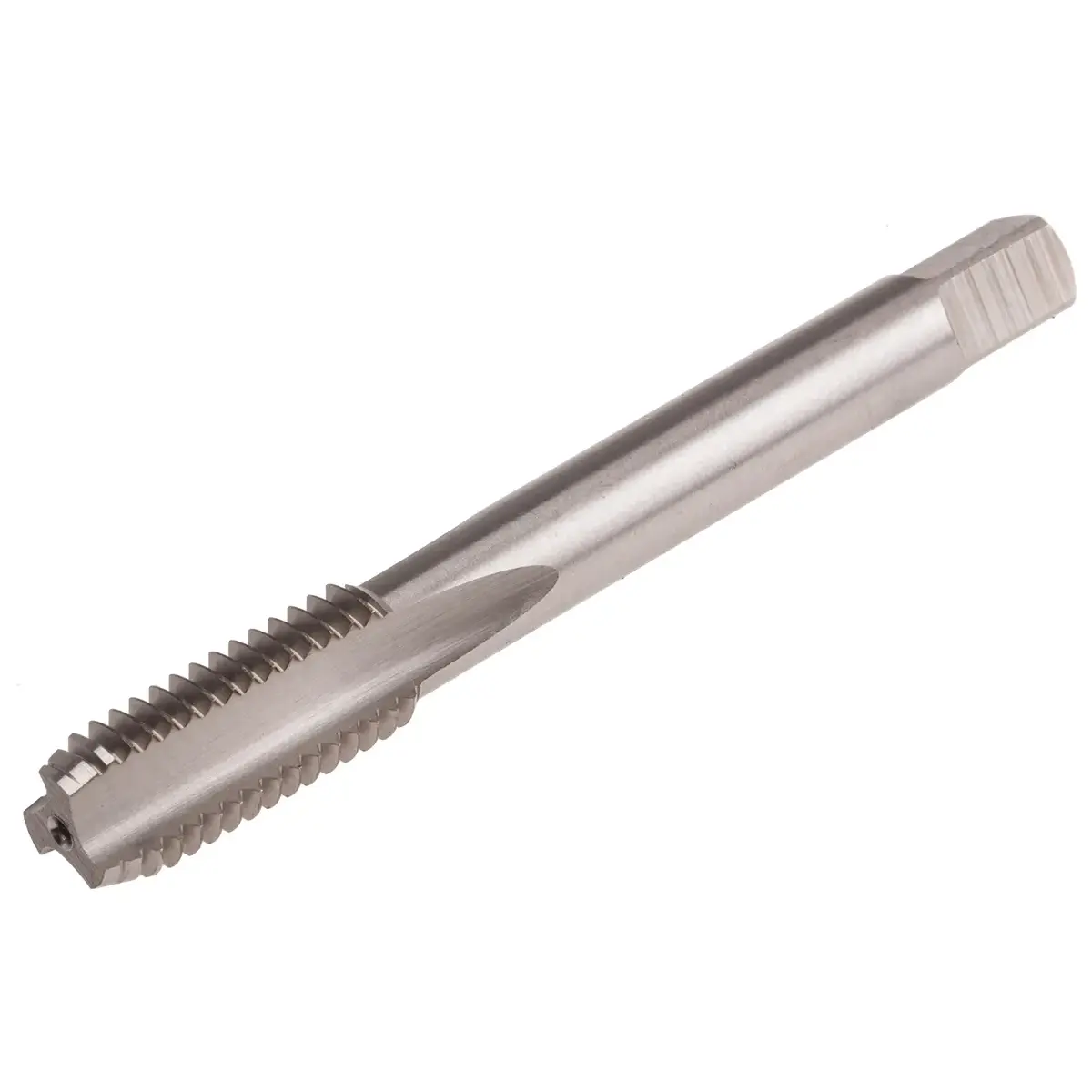

Volkel M24 x 3.0mm Hand Tap Plug (Bottoming) | Straight Fluted

£25.49 (inc. VAT: £30.59)

Volkel M24 x 3.0mm hand tap plug (bottoming) for blind holes. Tap diameter: 21.0 mm, straight fluted, Form C, HSS-G, ISO 529

Available on back-order

SKU: HTMP240 Category:

Description

VÖLKEL Hand Tap Plug (Bottoming) ISO 529 Form C HSS-G – M24 x 3.0mm

For general use with non abrasive material up to 900 N/mm², and unalloyed and low alloyed steel.

For through / blind holes and thread cutting by hand.

Pack quantity 1
Type of thread Metric ISO-thread
Standard ISO 529
Form Form C
Material HSS-G
Tolerance ISO2 (6H)
Size M 24 x 3.0
Overall length 130 mm
Thread length 45 mm
Core hole diameter 21.0 mm
Shank diameter 18.0 mm
Drive connector 14.0 mm
Type of flute Straight Fluted
Application For Blind Holes
Thread standard DIN 13

Additional information

Weight 0.255 kg
Dimensions 13 × 3 × 3 cm
Brand

Volkel

Unit Type

Metric

Tap Diameter

21mm

Tap Drill Diameter

M24

Tap Pitch

3mm

Material

HSS-G (High Speed Steel Ground)

Tap Type

Plug (Bottom)

Tap Form

Form C

Flute Type

Straight
