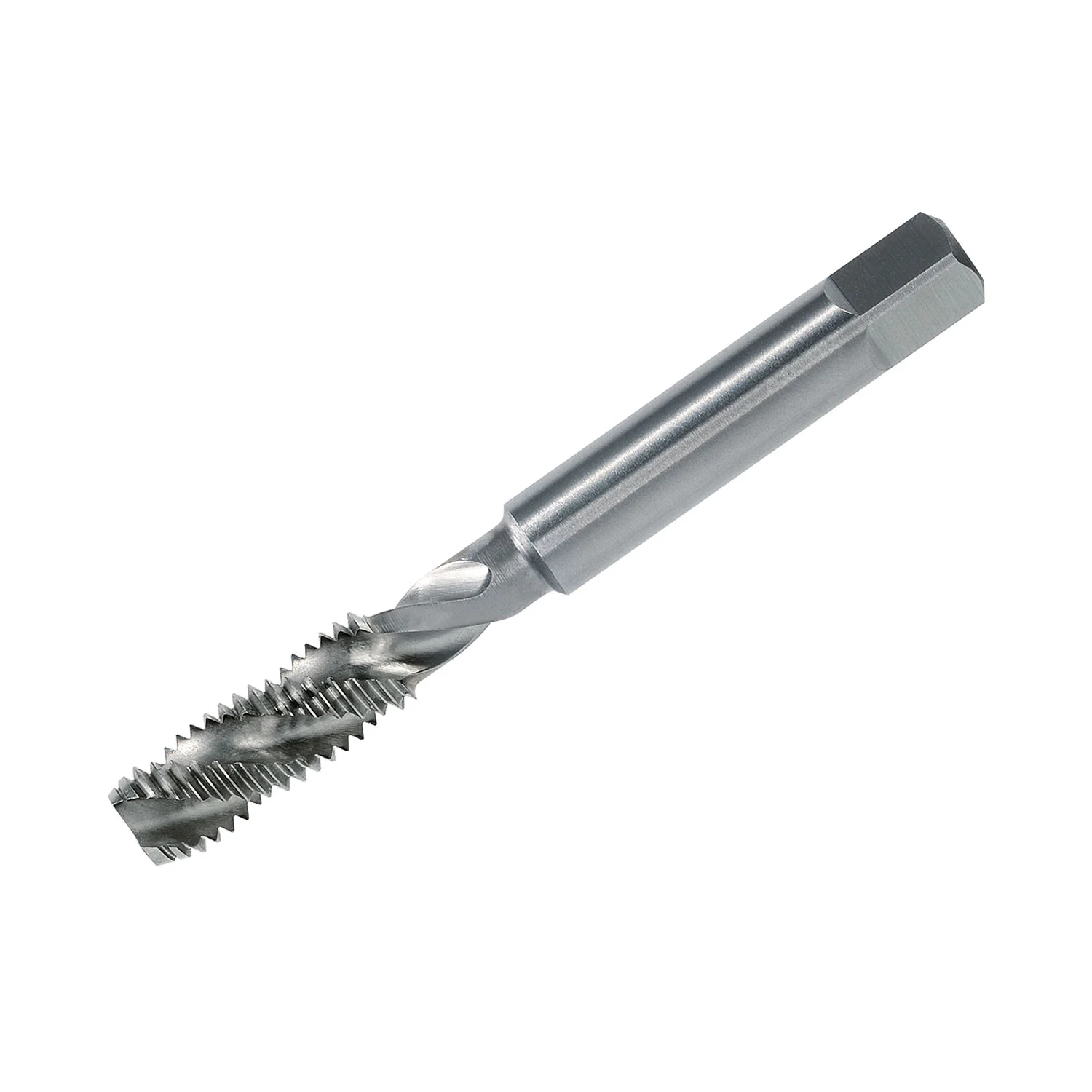

Volkel M10 x 1.5mm Spiral Flute Machine Tap

£21.65 (inc. VAT: £25.98)

5 in stock

SKU: MTMSF100 Category:

Description

    • Recommended tapping drill size = 8.5mm
    • Threadsize (D) = M10 x 1.5
    • Overall Length (L1) = 80mm
    • Working Length (L2) = 24mm
    • Shaft Diameter (D2) = 10.0mm
    • Drive Square Size (â–ˇ) = 8.0mm

    Metric Spiral Flute Machine Taps

    • Spiral flute 35 degrees for blind holes
    • Use with non abrasive material up to 900 N/mm2, unalloyed and low alloyed steel
    • Highest quality European manufactured
    • Metric ISO-thread DIN 13
    • ISO 529
    • HSS-G
    • Tolerance ISO2/6H
    • TiN coating available on some sizes – resists wear and minimise’s friction to allow increased cutting  speeds

Additional information

Weight 0.040 kg
Dimensions 10 × 2 × 2 cm
Brand

Volkel

Unit Type

Metric

Tap Diameter

8.5mm

Tap Drill Diameter

M10

Tap Pitch

1.5mm

Material

HSS-G (High Speed Steel Ground)

Tap Type

Spiral Flute

Flute Type

Spiral
